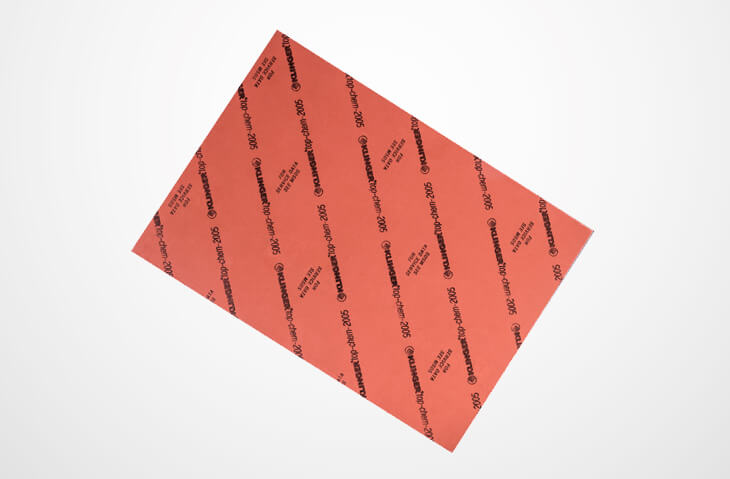

KLINGER® top-chem 2005

High chemical resistance in strongly acidic applications

KLINGER®top-chem 2005 offers an outstanding performance and a high chemical resistance in strongly acidic applications.

Basis

PTFE filled with inorganic fillers.

Areas of application

Suitable for a wide range of applications in the chemical industry. Economical alternative at the usage of filled PTFE gaskets.

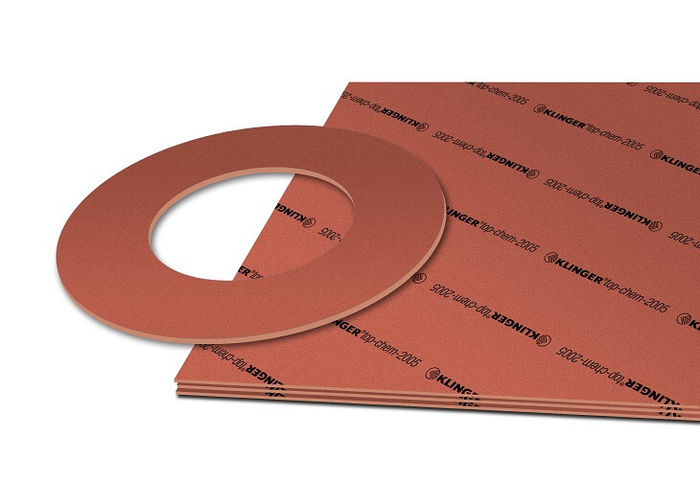

KLINGERSIL® C-4300 ist eine universelle Hochdruckdichtung.

Key features

  • Mainly for use in acids
  • Consistent material composition
  • Resistant to cold flow

Benefits

  • Excellent chemical resistance
  • Very good mechanical properties at medium temperatures
  • No ageing of the material
Certificates & approvals
  • BAM-tested
  • DIN-DVGW
  • WRAS approval
  • KTW-Guideline
  • DNV GL
  • TA-Luft (Clean air)
  • FDA conformity (components of KLINGER®topchem 2005 comply with the FDA requirements)
  • Regulation (EU) No. 1935/2004 (incl. 10/2011)

to the overview

Sales Partner

Check out our locations

Typical technical data for thickness 2.0 mm

Compressibility ASTM F 36 M



%

4

Recovery ASTM F 36 M

   % 40

Stress relaxation DIN 52913

 30 MPa, 16 h / 150 °C

MPa

 25

KLINGER cold/hot compression
50 MPa

thickness decrease at 23 °C
thickness decrease at 260 °C

 %
%

5
35

Tightness

 DIN 28090-2 mg/s x m

0.02

Specific leakrate λ

 VDI 2440 mbar x l/s x m

8.75E-07

Thickness/weight increase

H2SO4, 100 %: 18 h / 23 °C
HNO3, 100 %: 18 h / 23 °C
NaOH, 33 %: 72 h / 110 °C

 %
%
%		 1/1
1/2
–

Density

   g/cm3

2.2

Average surface resistance

 ρO Ω

3.1x10E13

Average specific volume resistance

 ρD Ω cm

3.2x10E13

Average dielectric strength

 Ed kV/mm

23.8

Average power factor

 50 Hz tan δ

0.071

Average dielectric coefficient

 50 Hz εr

3.2

Thermal conductivity

 λ W/mK

0.42

ASME-Code sealing factors

for gasket thickness 1.0 mm

tightness class 0.1 mg / s x m

 MPa

y 10
m 2.2

for gasket thickness 2.0 mm

tightness class 0.1 mg / s x m

 MPa

y 12
m 2.8

for gasket thickness 3.0 mm

tightness class 0.1 mg / s x m

 MPa

y 12
m 3.8

Dimensions of the standard sheets

Sizes 1500 x 1500 mm
Thicknesses 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
Tolerances Thickness acc. to DIN 28091-1
Length ±50 mm, Width ±50 mm

Other thicknesses, sizes and tolerances on request.

Klingersil C-4300 Platten

Function and durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our Installation manual.
