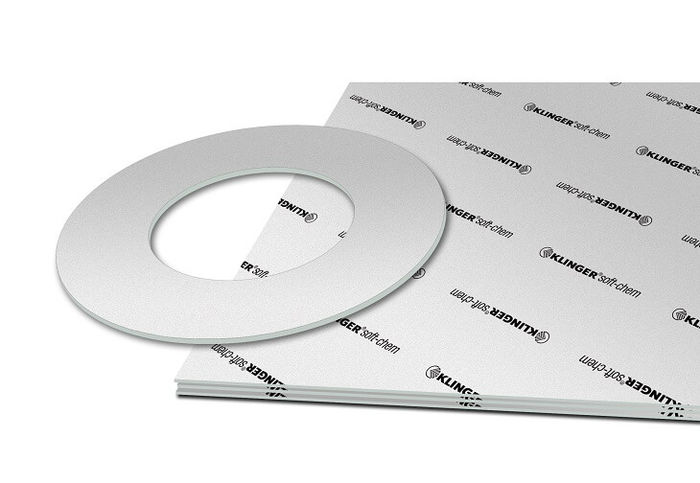

KLINGER® soft-chem
Sealing technology on a new level
KLINGER® soft-chem brings the sealing technology on a new level and it is the best choice for operating conditions up to 260°C.
Basis
Multi-directional expanded PTFE.
Areas of application
Excellent corrosion resistance together with superior sealability create a high-grade gasket material for a wide field of applications in your plant.
Key features
- Multi-directional expanded PTFE
- Suitable for a wide range of applications
Benefits
- Easy to cut
- Excellent sealing at low stress
- Seals irregular flanges
- No ageing of the material
Certificates & approvals
- Conforms to the regulation (EU) No. 1935/2004 (incl. 10/2011)
- FDA conformity (components of von KLINGER®soft-chem comply with the FDA requirements)
Typical technical data for thickness 2.0 mm
Compressibility ASTM F 36 M |
% |
50-60 | |
Recovery ASTM F 36 M |
% | 13-17 | |
Stress relaxation DIN 52913 |
30 MPa, 16 h / 150 °C | MPa | 15 |
KLINGER cold/hot compression |
thickness at 23 °C |
% % |
35 30 |
Tightness |
DIN 28090-2 | mg/s x m | 0.001 |
Density |
g/cm3 | 0.9 |

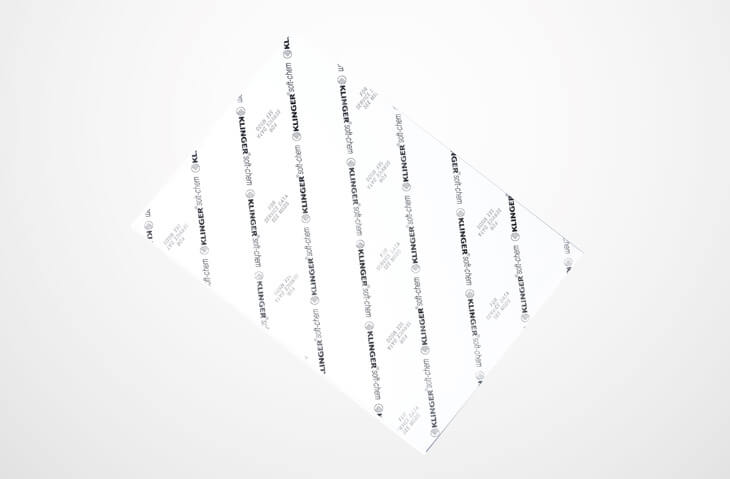

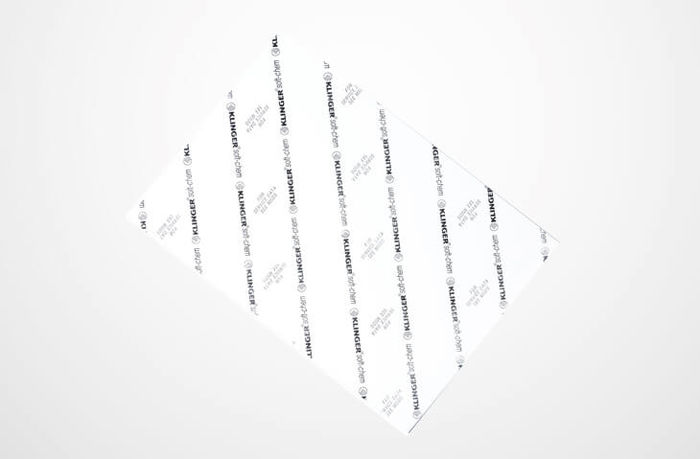

Dimensions of the standard sheets
| Sizes | 1500 x 1500 mm |
| Thicknesses | 1.5 mm, 2.0 mm, 3.0 mm |
| Tolerances | Thickness ±10 % Length ±50 mm, Width ±50 mm |
Other thicknesses, sizes and tolerances on reques.
Function and durability
The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.
