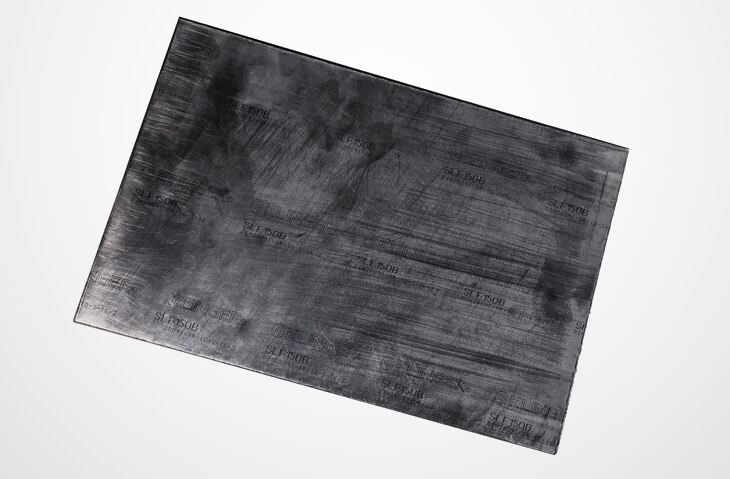

KLINGER® Graphite Laminate SLF
High temperature gasket material with outstanding performance
KLINGER® Graphite Laminate SLF combines easy handling with outstanding long term sealing performance. It complies with the German TA Luft (Clean-air).
Basis
This material is composed of two layers of flexible graphite and a 0.3 mm thick high temperature resistant and firbre based insert.
Areas of application
KLINGER® Graphite Laminate SLF is recommended for applications in which graphite is the material of choice and minimal fugitive emissions are required.
Key features
- Unique non-metallic reinforcement
- Excellent chemical resistance
- High temperature resistance
Benefits
- Easy to cut
- Safe handling
- Excellent tightness
Typical technical data for thickness 2 mm
Compressibility ASTM F 36 A |
% | 40 | |
Recovery ASTM F 36 A |
% | 14 | |
Density |
g/cm3 |
1.12 |
|
Density of Graphite |
g/cm3 |
1.0 |
|
Leachable Chloride content |
ppm | < 40 | |
Purity of Graphite (Carbon) |
% | > 99 | |
Insert |
fibre reinforced |
mm | 0.3 |
Tightness |
DIN 28090-2 | mg/s x m | 0.05 |
Stress relaxation |
DIN 52913 | MPa | 40 |
KLINGER cold/hot compression |
Thickness decrease at 25 °C |
% % |
42 10 |
Continuous service temperature |
°C | 350 | |
Thermogravimetric Analysis (TGA) |
DIN 28090-2, 4 h, 670 °C | < 4 %/h |

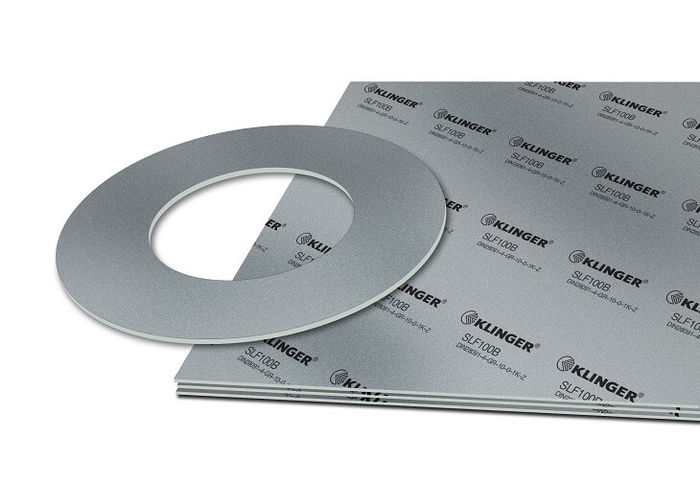

Dimensions of the standard sheets
| Sizes | 1000 x 1500 mm |
| Thicknesses | 1.5 mm, 2.0 mm |
| Tolerances | Thickness ±5 % Length ±4 mm, Width ±4 mm |
Other graphite qualities, thicknesses and sizes on request.
Function and durability
The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.
