KLINGERSIL® C-4430

Outstanding stress relaxation and resistance to hot water and steam

KLINGERSIL® C-4430 offers outstanding stress retention and resistance to hot water and steam.

Basis

Optimum combination of synthetic fibre, bonded with NBR.

Areas of application

Resistant to water and steam at higher temperatures as well as to oils, gases, salt solutions, fuels, alcohols, moderate organic and inorganic acids, hydrocarbons, lubricants and refrigerants.

KLINGERSIL® C-4300 ist eine universelle Hochdruckdichtung.

Key features

  • Optimum combination of synthetic and glass fibres
  • Outstanding stress relaxation
  • Dimensionally stable

Benefits

  • Suitable for high temperature steam and water
  • Better resistance against hydrocarbons
  • Suitable for many different media
Certificates& approvals
  • BAM-tested
  • DIN-DVGW
  • DIN-DVGW W 270
  • DVGW VP 401
  • Elastomer-Guideline
  • WRAS approval
  • DNV GL
  • TA-Luft (Clean air)
  • Fire-Safe acc. to DIN EN ISO 10497
  • Fire-Safe acc. to ISO 19921

to the overview

Sales Partner

Check out our locations

Typical technical data for thickness 2.0 mm

Compressibility ASTM F 36 J



%

 9

Recovery ASTM F 36 J

   % 55

Stress Relaxation DIN 52913

 50 MPa,16 h / 175 °C
50 MPa,16 h / 300 °C		 MPa
MPa		 39
35

Stress relaxation BS 7531

 40 MPa, 16 h / 300 °C MPa

31

KLINGER cold/hot compression
50 MPa

thickness decrease at 23 °C
thickness decrease at 300 °C

 %
%		 8
11

Tightness

 DIN 28090-2 mg/s x m

0.05

Specific leakrate λ

 VDI 2440 mbar x l/s x m

2.13E-05

Thickness increase after fluid
immersion ASTM F 146

Oil IRM 903: 5 h / 150 °C
Fuel B: 5 h / 23 °C

 %
%		 3
5

Density

   g/cm3

1.8

Average surface resistance

ρO

 Ω

4.1x10E13

Average specific volume resistance

ρD

 Ω cm

4.5x10E12

Average dielectric strength

Ed

 kV/mm

21.3

Average power factor

 50 Hz

tanδ

0.03

Average dielectric coefficient

 50 Hz εr

6.7

Thermal conductivity

 λ W/mK

0.38

Classification acc. to BS 7531:2006

 Grade AX

ASME-Code sealing factors

for gasket thickness 1.0 mm

tightness class 0.1 mg / s x m

 MPa

y 20
m 1.1

for gasket thickness 2.0 mm

tightness class 0.1 mg / s x m

 MPa

y 20
m 1.6

for gasket thickness 3.0 mm

tightness class 0.1 mg / s x m

 MPa

y 20
m 2.2

Dimensions of the standard sheets

Sizes 1000 x 1500 mm, 2000 x 1500 mm
Thicknesses 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
Tolerances Thickness acc. to DIN 28091-1
Length ±50 mm, Width ±50 mm

Other thicknesses, sizes and tolerances on request.

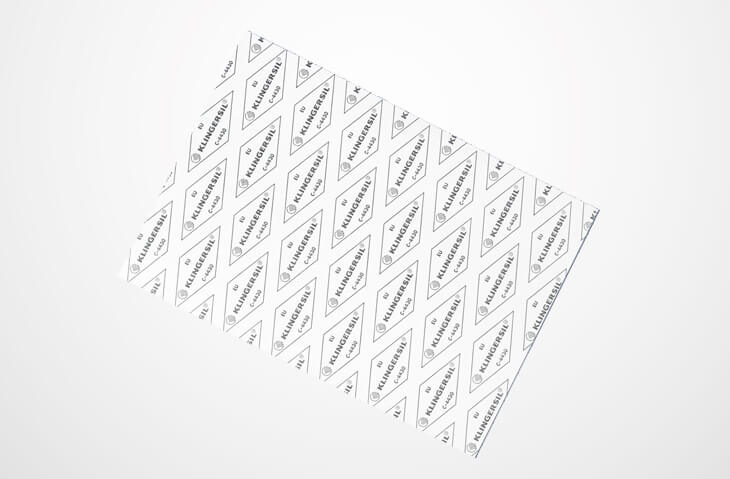

Klingersil C-4300 Platten

Function and durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.

Downloads

Below you can find more product-related information.

Product documentation (pdf) (1.2 MiB)
Data sheet (pdf) (211.8 KiB)
Safety information (pdf) (33.5 KiB)
