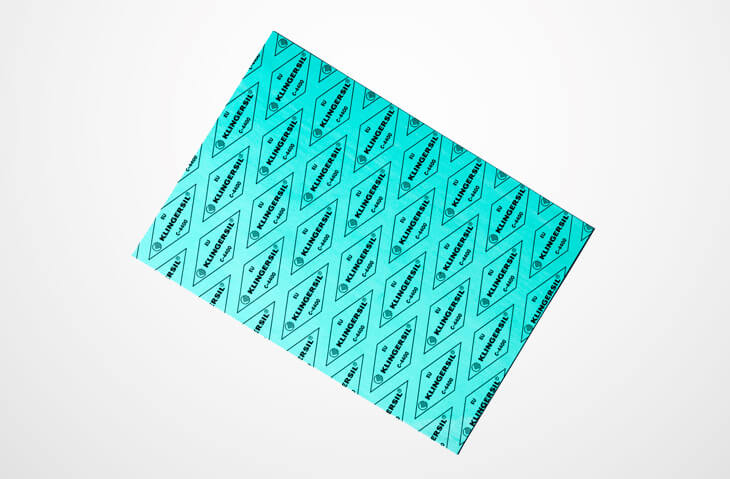

KLINGERSIL® C-4400

Higher safety for universal applications

KLINGERSIL® C-4400 is a universal material for safe and reliable sealing. It consists of a unique matrix, which offers an excellent combination of different properties.

Basis

Aramid fibres, bonded with NBR.

Areas of application

Resistant to oils, water, steam, gases, salt solutions, fuels, alcohols, moderate organic and inorganic acids, hydrocarbons, lubricants and refrigerants.

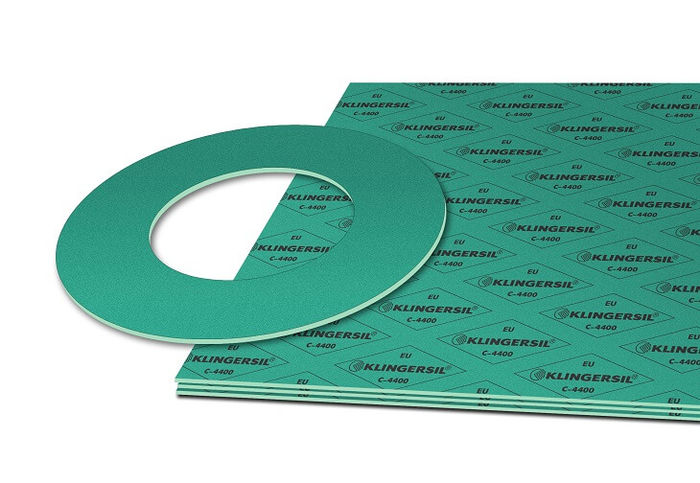

KLINGERSIL® C-4400 ist eine universelle Hochdruckdichtung.

Key features

  • Universal high pressure gasket material
  • Dimensionally stable
  • Consistent material composition

Benefits

  • Excellent price/Performance ratio
  • Suitable for many different media
  • Very good resistance to refrigerants
Certificates & approvals
  • BAM tested
  • DIN-DVGW
  • DIN-DVGW W 270
  • DVGW VP 401
  • Elastomer-Guideline
  • ÖVGW Reg.No. G 1.912
  • DNV GL
  • TA-Luft (Clean air)
  • Fire-Safe acc. to DIN EN ISO 10497

to the overview

Sales Partner

Check out our locations

Typical technical data for thickness 2.0 mm

Compressibility ASTM F 36 J



%

 11

Recovery ASTM F 36 J

   % 55

Stress relaxation DIN 52913

 50 MPa, 16 h / 175 °C
50 MPa, 16 h / 300 °C		 MPa
MPa		 37
25

Stress relaxation BS 7531

 40 MPa, 16 h / 300 °C MPa 25

KLINGER cold/hot compression
50 MPa

thickness decrease at 23 °C
thickness decrease at 300 °C

 %
%		 10
20

Tightness

 DIN 28090-2 mg/s x m

0.02

Specific leakrate λ

 VDI 2440 mbar x l/s x m 1.64E-08

Thickness increase after fluid
immersion ASTM F 146

Oil IRM 903: 5 h / 150 °C
Fuel B: 5 h / 23 °C

 %
%		 3
5

Density

   g/cm3

1.6

Average surface resistance

ρO

 Ω

1.4x10E12

Average specific volume resistance

ρD

 Ω cm

1.2x10E12

Average dielectric strength

 ED kV/mm

21.6

Average power factor

 50 Hz tan δ

0.131

Average dielectric coefficient

 50 Hz

εr

9.2

Thermal conductivity

 λ W/mK

0.42

Classification acc. to BS 7531:2006

 Grade AY

ASME-Code sealing factors

for gasket thickness 1.0 mm

tightness class 0.1 mg / s x m

 MPa

y 15
m 1.2

for gasket thickness 2.0 mm

tightness class 0.1 mg / s x m

 MPa

y 15
m 1.6

for gasket thickness 3.0 mm

tightness class 0.1 mg / s x m

 MPa

y 15
m 4.0

Dimensions of the standard sheets

Sizes 1000 x 1500 mm, 2000 x 1500 mm
Thicknesses 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
Tolerances Thickness acc. to DIN 28091-1
Length ±50 mm, Width ±50 mm

Other thicknesses, sizes and tolerances on request.

Klingersil C-4300 Platten

Function and durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.

Downloads

Below you can find more product-related Information.

Product documentation (pdf) (1.1 MiB)
Data sheet (pdf) (193.4 KiB)
Safety information (pdf) (33.5 KiB)
Gasket factors (pdf) (90.9 KiB)
