KLINGER® Quantum

Unique gasket material with highest flexibility at high temperatures

KLINGER® Quantum is a unique gasket material with highest flexibility at high temperatures.

Basis

High-quality fibre and filler compound bonded in a high temperature resistant HNBR-Matrix.

Areas of application

This material is suitable for the use in oils, water, steam, gases, salt solutions, fuels, alcohols, moderate organic and inorganic acids, hydrocarbons, lubricants and refrigerants.

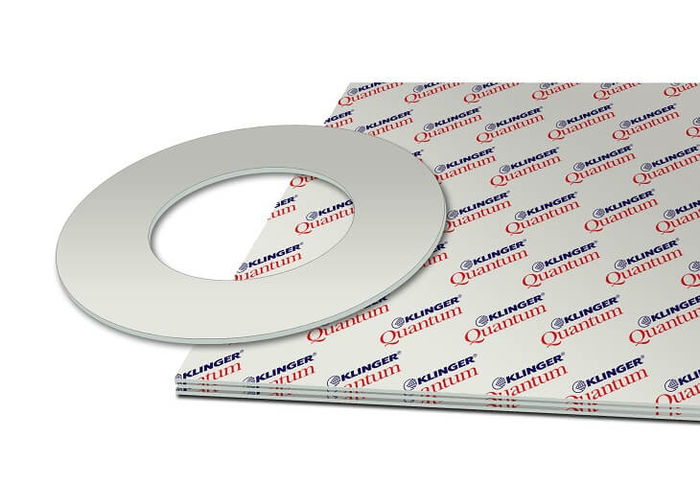

KLINGERSIL® C-4300 ist eine universelle Hochdruckdichtung.

Key features

  • Unique HNBR matrix
  • Special curing technology
  • Resistant to creep and cold flow
  • Dimensionally stable

Benefits

  • Superior long-term flexibility at higher temperatures
  • Outstanding temperature resistance
  • FDA conformity
Certificates & approvals
  • BAM-tested
  • DIN-DVGW
  • TA-Luft (Clean air)
  • Fire-Safe acc. to DIN EN ISO 10497
  • FDA conformity

to the overview

Sales Partner

Check out our locations

Typical technical data for thickness 2.0 mm

Compressibility ASTM F 36 J



%

10

Recovery ASTM F 36 J

   % 50

Stress relaxation DIN 52913

 50 MPa, 16 h / 175 °C
50 MPa, 16 h / 300 °C		 MPa
MPa		 32
30

Stress relaxation BS 7531

 40 MPa, 16 h / 300 °C MPa

29

KLINGER cold/hot compression
50 MPa

thickness decrease at 23 °C
thickness decrease at 300 °C
thickness decrease at 400 °C

 %
%
%		 10
14
20

Tightness

 DIN 28090-2 mg/s x m

0.02

Specific leakrate λ

VDI 2440

mbar x I/s x m

4.4E-08

Thickness increase after fluid
immersion ASTM F 146

Oil IRM 903: 5 h / 150 °C
Fuel B: 5 h / 23 °C

 %
%		 3
5

Density

   g/cm3

1.7

Average surface resistance

 ρO Ω

7.7x10E12

Average specific volume resistance

 ρD Ω cm

4.7x10E12

Average dielectric strength

Ed

 kV/mm

18.5

Average power factor

 50 Hz

tanδ

0.064

Average dielectric coefficient

 50 Hz εr

6.8

Thermal conductivity

 λ W/mK

0.44

Classification acc. to BS 7531:2006

Grade AX



ASME-Code sealing factors

for gasket thickness 1.0 mm

tightness class 0.1 mg / s x m

 MPa

y 15
m 1.1

for gasket thickness 2.0 mm

tightness class 0.1 mg / s x m

 MPa

y 15
m 2.5

for gasket thickness 3.0 mm

tightness class 0.1 mg / s x m

 MPa

y 15
m 3.8

Dimensions of the standard sheets

Sizes 1000 x 1500 mm, 2000 x 1500 mm
Thicknesses 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
Tolerances Thickness acc. to DIN 28091-1
Length ±50 mm, Width ±50 mm

Other thicknesses, sizes and tolerances on request.

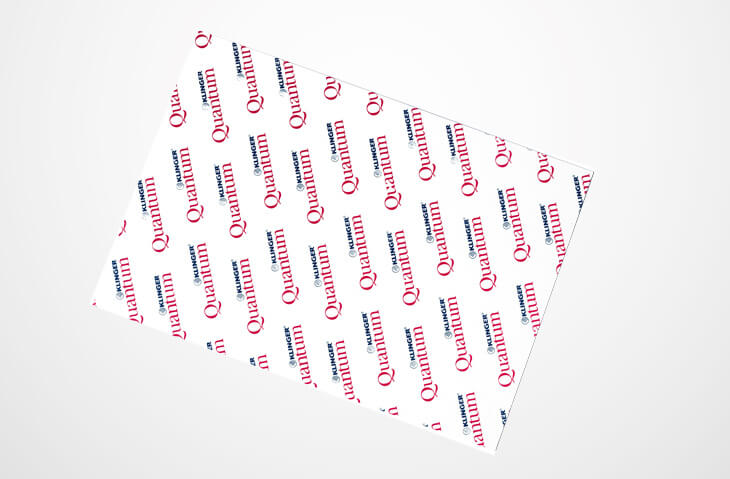

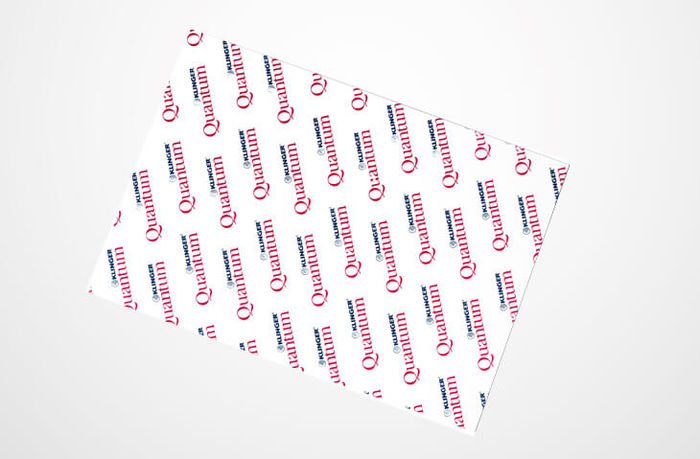

Klingersil C-4300 Platten

Function and durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our Installation manual.

Downloads

Below you can find more product-related Information.

Product documentation (pdf) (1.4 MiB)
Data sheet (pdf) (228.3 KiB)
Safety information (pdf) (33.6 KiB)
Gasket factors (pdf) (90.9 KiB)
