KLINGER® top-chem 2000

Exceptional performance at high mechanical requirements

KLINGER®top-chem 2000 is a universal heavy-duty gasket, which offers an exceptional performance in applications with high mechanical requirements at high temperatures. The only PTFE gasket with a Fire-safe-certificate.

Basis

PTFE gasket filled with SiC (Silicon carbide).

Areas of application

Excellent resistance in strongly acidic and alkaline applications as well as to steam and oxygen. Suitable for an extremely wide range of applications in the chemical and petrochemical industry, as well as in the ship building industry for the transport of chemicals.

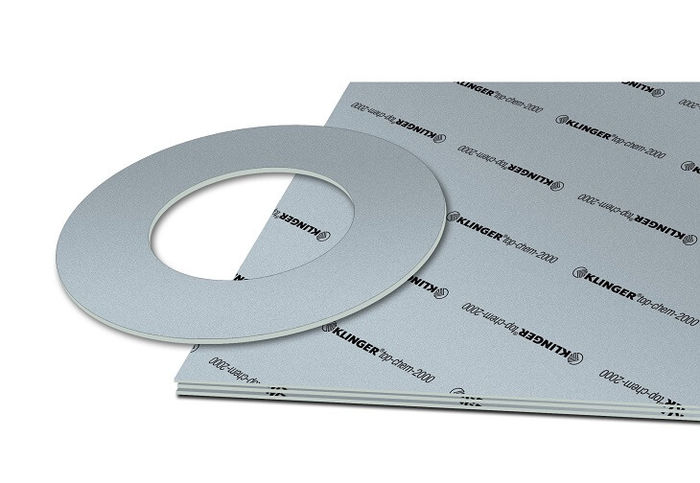

KLINGERSIL® C-4300 ist eine universelle Hochdruckdichtung.

Key features

  • Mechanically stable
  • Resistant to creep and cold flow
  • Consistent material composition

Benefits

  • Resists high surface pressures also at elevated temperatures
  • High retention of the bolt load
  • Superior chemical resistance
  • No ageing of the material
Certificates & approvals
  • DIN-DVGW
  • DIN-DVGW W 270
  • KTW-Guideline
  • DNV GL
  • WRAS approval
  • TA-Luft (Clean air)
  • Fire-Safe acc. to DIN EN ISO 10497
  • FDA conformity
  • Regulation (EU) No. 1935/2004 (incl.10/2011)

to the overview

Sales Partner

Check out our locations

Typical technical data for thickness 2.0 mm

Compressibilty ASTM F 36 M



%

 4

Recovery ASTM F 36 M

   % 50

Stress relaxation DIN 52913

 30 MPa, 16 h / 150 °C
50 MPa, 16 h / 260 °C

MPa
MPa

 28
36

KLINGER cold/hot compression
50 MPa

thickness decrease at 23 °C
thickness decrease at 260 °C

 %
%		 5
11

Tightness

 DIN 28090-2 mg/s x m

0.08

Specific leakrate λ

 VDI 2440 mbar x l/s x m

4.46E-06

Thickness/weight increase

H2SO4, 100%: 18 h / 23 °C
HNO3, 100%: 18 h / 23 °C
NaOH, 33%: 72 h / 110 °C

 %
%
%		 1/1
1/2
1/3

Density

   g/cm3

2.5

Average surface resistance

 ρO Ω

6.9x10E12

Average specific volume resistance

 ρD Ω cm

2.2x10E12

Average dielectric strength

Ed

 kV/mm

3.6

Average power factor

 50 Hz tanδ

0.166

Average dielectric coefficient

 50 Hz εr

10.6

Thermal conductivity

 λ W/mK

0.60

ASME-Code sealing factors

for gasket thickness 1.0 mm

tightness class 0.1 mg / s x m

 MPa

y 12
m 2.8

for gasket thickness 2.0 mm

tightness class 0.1 mg / s x m

 MPa

y 15
m 3.2

for gasket thickness 3.0 mm

tightness class 0.1 mg / s x m

 MPa

y 18
m 3.8

Dimensions of the standard sheets

Sizes 1500 x 1500 mm
Thicknesses 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
Tolerances Thickness acc. to DIN 28091-1
Length ±50 mm, Width ±50 mm

Other thicknesses, sizes and tolerances on request.

Klingersil C-4300 Platten

Function and durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our Installation manual.
