KLINGERSIL® C-8200

More safety for the use with high concentrated acids

KLINGERSIL® C-8200 is a premium high-pressure gasket which offers more safety for the use with high concentrated acids.

Basis

Glass fibres, bonded with special acid resistant elastomers.

Areas of application

This material is resistant to a wide variety of media and especially to acids.

KLINGERSIL® C-4300 ist eine universelle Hochdruckdichtung.

Key features

  • Special acid-resistant elastomer as binder
  • Flame retardant binder

Benefits

  • Resistant to a variety of media especially acids
  • Improved ozone resistance
Certificates & approvals
  • DNV GL
  • TA-Luft (Clean air)

to the overview

Sales Partner

Check out our locations

Typical technical data for thickness 2.0 mm

Compressibility ASTM F 36 J



%

 9

Recovery ASTM F 36 J

   % 55

KLINGER cold/hot compression
25 MPa

thickness decrease at 23 °C
thickness decrease at 200 °C

 %
%		 7
15

Specific leakrate λ

 VDI 2440 mbar x l/s x m

9.17E-09

Density

   g/cm3

1.7

Acid tests



Thickness increase after fluid
immersion ASTM F 146

HNO3, 96%, 18 h / 23 °C
H2SO4, 96%, 18 h / 23 °C
H2SO4, 65%, 48 h / 23 °C
Öl IRM 903: 5 h / 150 °C
Fuel B: 5 h / 23 °C

 %
%
%
%
%

unsuitable
15
8
5
10

Average surface resistance

 ρO Ω

5.8x10E11

Average specific volume resistance

 ρD Ω cm

4.1x10E12

Average dielectric strength

Ed

 kV/mm

17.0

Average power factor

 50 Hz tan δ

0.228

Average dielectric coefficient

 50 Hz εr

9.4

ASME-Code sealing factors

for gasket thickness 1.0 mm

tightness class 0.1 mg / s x m

 MPa

y 20
m 2.1

for gasket thickness 2.0 mm

tightness class 0.1 mg / s x m

 MPa

y 20
m 3.0

for gasket thickness 3.0 mm

tightness class 0.1 mg / s x m

 MPa

y 20
m 6.2

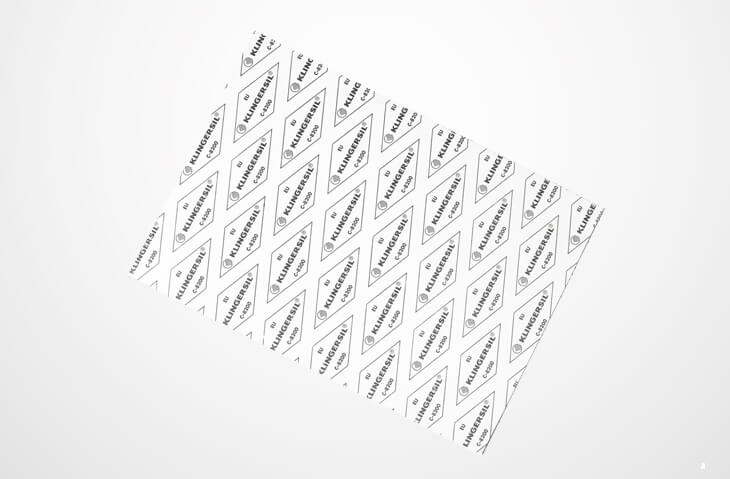

Dimensions of the standard sheets

Sizes 1000 x 1500 mm, 2000 x 1500 mm
Thicknesses 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
Tolerances Thickness acc. to DIN 28091-1
Length ±50 mm, Width ±50 mm

Other thicknesses, sizes and tolerances on request.

Klingersil C-4300 Platten

Function and durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.
