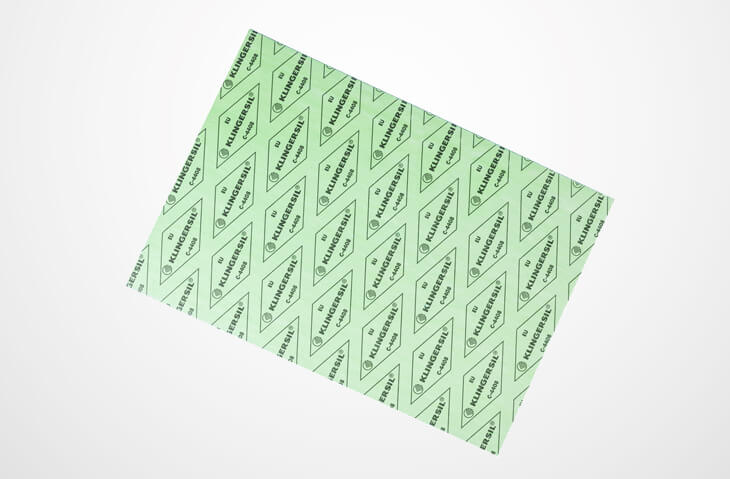

KLINGERSIL® C-4408

Universal high pressure gasket for industrial applications.

KLINGERSIL® C-4408 is suitable for high stress due to wire reinforcement. It is a universal high-pressure gasket for the use in a wide range of industrial applications.

Basis

Aramid fibres bonded with NBR.

Areas of application

Resistant to oils, water, steam, gases, fuels, alcohols, hydrocarbons, lubricants and refrigerants.

KLINGERSIL® C-4300 ist eine universelle Hochdruckdichtung.

Kea Features

  • Wire reinforcement
  • Improved stress relaxation

Benefits

  • Suitable for higher pressures
  • Higher resistance against blow-outs
  • More safety at high internal pressures

Typical technical data for thickness 2.0 mm

Compressibility ASTM F 36 J



%

8

Recovery ASTM F 36 J

  % 50

Stress relaxation DIN 52913

50 MPa, 16 h / 300 °C

MPa

28

Stress relaxation BS 7531

40 MPa, 16 h / 300 °C MPa

28

KLINGER cold/hot compression
50 MPa

thickness decrease at 23 °C
thickness decrease at 300 °C

%
%
10
18

Thickness increase after fluid
immersion ASTM F 146

Oil IRM 903: 5 h / 150 °C
Fuel B: 5 h / 23 °C

%
%
5
5

Densitiy

  g/cm3

1.9

Classification acc. to BS 7531:2006

Grade Y


Dimensions of the standard sheets

Sizes 1000 x 1500 mm, 2000 x 1500 mm
Thicknesses 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
Tolerances Thickness acc. to DIN 28091-1
Length ±50 mm, Width ±50 mm

Other thicknesses, sizes and tolerances on request.

Function und durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation Manual.
