KLINGERSIL® C-4300

Universal high-pressure gasket for a wide range of applications

KLINGERSIL® C-4300 is a universal high-pressure gasket and offers more safety for a wide range of suitable applications.

Basis

Aramid fibres bonded with NBR.

Areas of application

Resistant to hot water, steam, oils, hydrocarbons and many other chemicals.

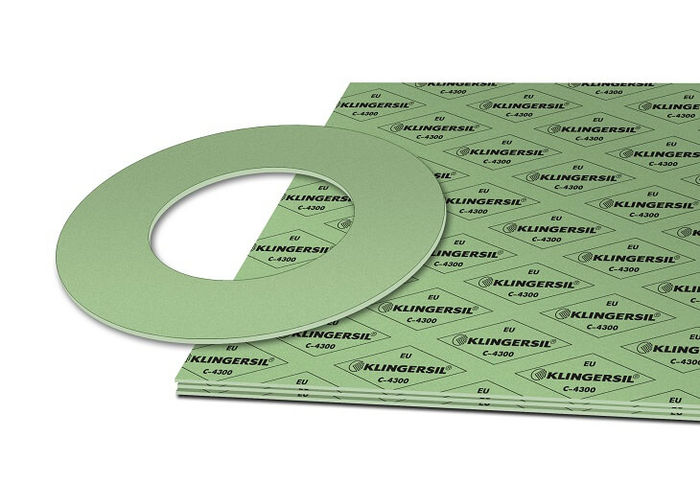

KLINGERSIL® C-4300 ist eine universelle Hochdruckdichtung.

Key features

  • General purpose gasket material
  • Dimensionally stable
  • Consistent material composition

Benefits

  • Excellent Price/Performance ratio
  • Suitable for many different media
Certificates & approvals
  • DIN-DVGW
  • DIN-DVGW W 270
  • Elastomer-Guideline
  • DNV GL
  • SVGW approval

to the overview

Sales Partner

Check out our locations

Typical technical data for thickness 2.0 mm

Compressibility ASTM F 36 J



%

14

Recovery ASTM F 36 J

   % 50

Stress relaxation DIN 52913

 50 MPa,16 h / 175 °C
50 MPa,16 h / 300 °C

MPa
MPa

 32
20

Stress relaxation BS 7531

 40 MPa, 16 h / 300 °C MPa

23

KLINGER cold/hot compression
50 MPa

thickness decrease at 23 °C
thickness decrease at 300 °C

 %
%		 10
22

Tightness

 DIN 28090-2 mg/s x m

0.03

Thickness increase after fluid immersion ASTM F 146

oil IRM 903: 5 h / 150 °C
fuel B: 5 h / 23 °C

 %
%		 5
10

Density

   g/cm3

1.6

Average surface resistance

ρO

 Ω

2.2x10E12

Average specific volume resistance

ρD

 Ω cm

1.2x10E12

Average dielectric strength

 ED kV/mm 10

Average power factor

 50 Hz tan δ

0.082

Average dielectric coefficient

 50 Hz

εr

7.4

Thermal conductivity

 λ W/mK

0.39

Classification acc. to BS 7531:2006

 Grade Y

ASME-Code sealing factors

for gasket thickness 1.0 mm

tightness class 0.1 mg / s x m

 MPa

y 15
m 1.3

for gasket thickness 2.0 mm

tightness class 0.1 mg / s x m

 MPa

y 15
m 3.0

for gasket thickness 3.0 mm

tightness class 0.1 mg / s x m

 MPa

y 15
m 4.0

Dimensions of the standard sheets

Sizes 1000 x 1500 mm, 2000 x 1500 mm
Thicknesses 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
Tolerances Thickness acc. to DIN 28091-1
Length ±50 mm, Breite ±50 mm

Other thicknesses, sizes and tolerances on request.

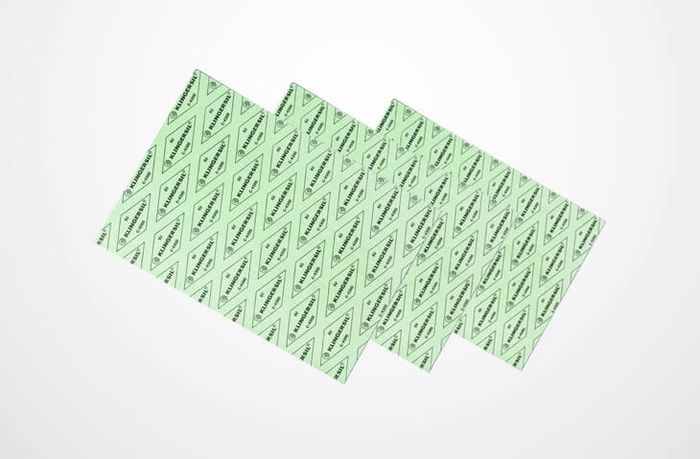

Klingersil C-4300 Platten

Function und durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.

Downloads

Below you can find more product-related Information.

Product documentation (pdf) (967.0 KiB)
Data sheet (pdf) (209.7 KiB)
Safety information (pdf) (33.7 KiB)
Gasket factors (pdf) (90.9 KiB)
