KLINGER^® CompenSil

Excellent sealing performance also at low bolt loads

KLINGER^® CompenSil delivers and maintains excellent sealing performance in all kind of applications. It is used for liquids and gaseous media at lower pressures and temperatures and low bolt loads. Additionally it provides good resistance against oils, hydrocarbons, refrigerants and other chemicals.

Basis

Unique combination of Mineral fibres bonded with NBR.

Areas of application

KLINGER^® CompenSil is ideal for use in applications where only low bolt loads are possible. It compensates inadequate bolting procedure and has best potential to seal even under irregular load allocation.

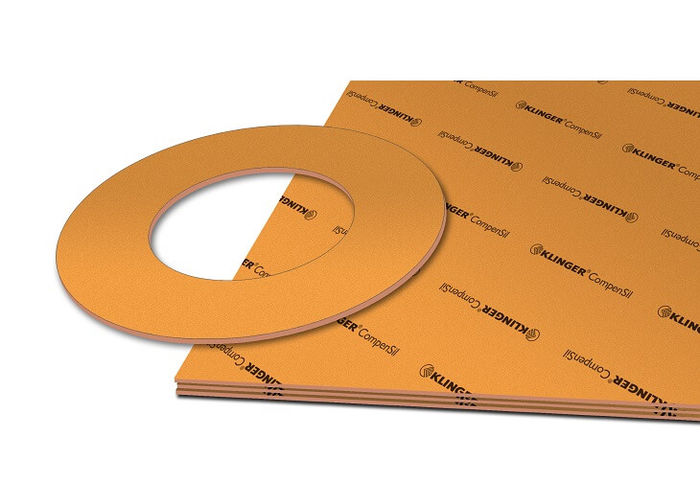

KLINGERSIL® C-4300 ist eine universelle Hochdruckdichtung.

Key features

High compressibility
Excellent spring back behavior
Resistant to creep and cold flow
Dimensionally stable
Consistent material composition

Benefits

Provides superior adaptability to any sealing surface
Seals irregular flanges
Conforms easily
Superior sealing at low stress
Increased resistance against refrigerants

Typical technical data for thickness 2.0 mm

Compressibility ASTM F 36 J		%	22
Recovery ASTM F 36 J		%	45
KLINGER cold/hot compression 50 MPa	thickness decrease at 23 °C thickness decrease at 200°C	% %	18 22
Tightness	DIN 28090-2	mg/s x m	0.01
Thickness increase after fluid immersion ASTM F 146	Oil IRM 903: 5 h / 150 °C Fuel B: 5 h / 23 °C	% %	10 15
Density		g/cm³	1.5

ASME-Code sealing factors

for gasket thickness 1.0 mm	tightness class 0.1 mg / s x m	MPa	y 10 m 1.0
for gasket thickness 2.0 mm	tightness class 0.1 mg / s x m	MPa	y 10 m 2.9
for gasket thickness 3.0 mm	tightness class 0.1 mg / s x m	MPa	y 10 m 3.3

Dimensions of the standard sheets

Sizes	2000 x 1500 mm
Thickness	0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
Tolerances	Thickness acc. to DIN 28091-1 Length ±50 mm, Width ±50 mm

Other thicknesses, sizes and tolerances on Request.

Function and durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.
